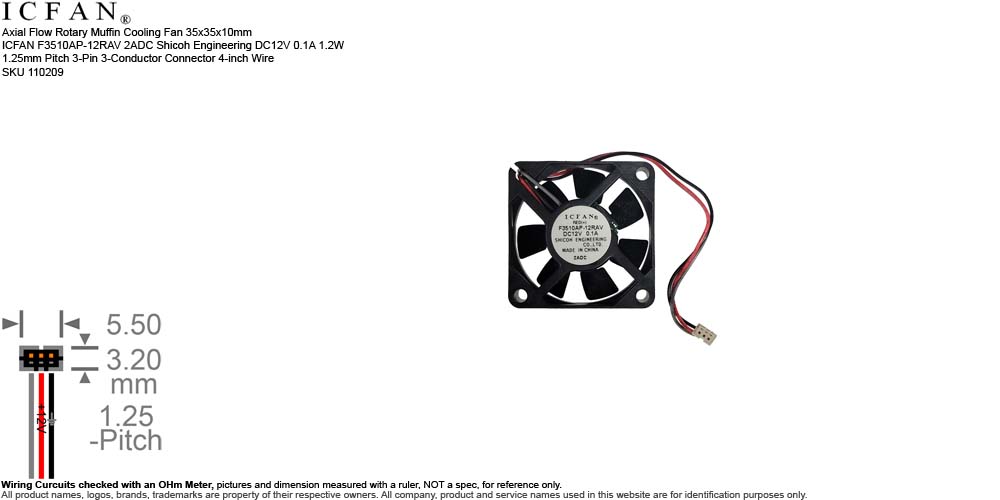

Axial Flow Rotary Muffin Cooling Fan 35x35x10mm
ICFAN F3510AP-12RAV 2ADC Shicoh Engineering DC12V 0.1A 1.2W
1.25mm Pitch 3-Pin 3-Conductor Connector 4-inch Wire SKU 110209
FN-4010-xxx

Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

  • Description: Axial Flow Rotary Muffin Cooling Fan 35x35x10mm ICFAN F3510AP-12RAV 2ADC Shicoh Engineering DC12V 0.1A 1.2W 1.25mm Pitch 3-Pin 3-Conductor Connector 4-inch Wire SKU 110209
  • Manufacturer: Shicoh Engineering Co., Ltd.
  • Brand or Distributor:
    • ICFAN
  • Model:
    • ICFAN F3510AP-12RAV 2ADC
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 35x35x10mm
    • Power Rating: DC12V 0.1A 1.2W
    • Bearing: Sleeve Bearing
    • Speed: 7,500~9,300 RPM
    • Air Flow: 3.5~5.9 CFM
    • Noise Level: 25~28 dB(A)
    • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Connection: 1.25mm Pitch 3-Pin 3-Conductor Connector
    • Overall Wire Length: 4-inch
  • Weight: 0.4 oz (estimated shipping weight 5 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
    • SKU ______O - Open Box, Pulled from unused Sony StorStation AIT Library LIB-81
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may with signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag
  • For used with or pulled from: (for reference only)
    • Features:
      • Built-in auto-restart protection, polarity protection, and a low-amp draw design (0.10A rated current) that maximizes component lifespan under continuous running conditions
    • Applications:
      This ultra-compact fan is deployed primarily as an original equipment manufacturer (OEM) replacement part in small, high-density environments.
      • Home theater projectors and media presentation equipment
      • Micro server racks and network switches
      • Embedded computer processing boards and CPU heatsinks
      • Closed automation modules and miniature control boxes
    • F3510AP-12RAV 2ADC Part Number Breakdown:
      • 'F' Fan type designation (DC Axial IC Fan Motor).
      • '35' Frame Width (35 mm)
      • '10' Frame Thickness (10 mm)
      • 'A' Frame Style identifier (Standard square profile)
      • 'P' Bearing Type code (Proprietary high-reliability design; Shicoh frequently uses specialized Circulating / Sleeve layouts for low-noise footprints)
      • '12' Rated Voltage (12V DC)
      • 'R' Speed Rating code (Regular / High performance for this size footprint)
      • 'A' Function / Circuit Type identifier
      • 'V' Sensor / Signal Output Type designation (Typically indicates the presence of a 3rd wire for Tachometer / Frequency Generator output)
      • '2ADC' An e-commerce / listing tag indicating its power environment interface requirements (e.g., 2-wire/3-wire assembly configured for Amperage/DC power lines)
    • Pulled from Unused Sony StorStation AIT Library LIB-81
  • Serial Number Available or Sold:
    • SN 0090886 Unused Open Box
    • SN 0090887 Unused Open Box
    • SN 0090888 Unused Open Box
