Features Applications Voltage Amperage RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

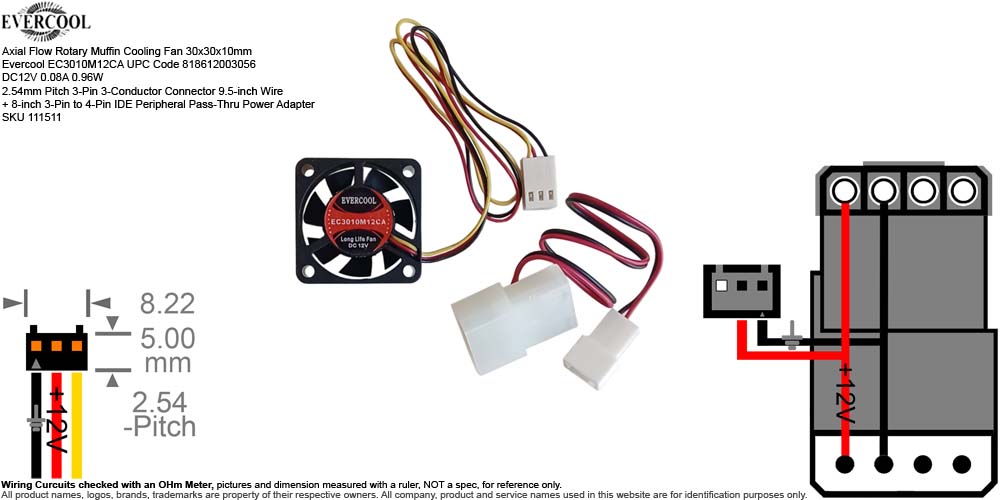

• Description: Axial Flow Rotary Muffin Cooling Fan 30x30x10mm Evercool EC3010M12CA UPC Code 818612003056 DC12V 0.08A 0.96W 2.54mm Pitch 3-Pin 3-Conductor Connector 9.5-inch Wire + 8-inch 3-Pin to 4-Pin IDE Peripheral Pass-Thru Power Adapter SKU 111511
• Manufacturer: Evercool Thermal Co., Ltd.
• Brand or Distributor:
  • Evercool
• Model:
  • Evercool EC3010M12CA
  • UPC Code 818612003056
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 30x30x10mm
  • Power Rating: DC12V 0.08A 0.96W
  • Bearing: Ball Bearing
  • Speed: 8,000 RPM +/- 10%
  • Air Flow: 3.7 CFM
  • Noise Level: 22 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection & Wire Length:
    • 2.54mm Pitch 3-Pin 3-Conductor Connector (Female) 9.5-inch Wire
    • Optional Molex Compatible IDE Peripheral Power Adapter (included)
      • 2.54mm Pitch 3-Pin 2-ConductorConnector (Male) 8-inch Wire to
      • IDE Peripheral 4-pin Male Female Pass-Thru Adapter
• Weight: 1.1 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, pulled from unsold Hard Drive Tray
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Original Evercool Retail Packaging
• For used with or pulled from: (for reference only)
  • The Evercool EC3010M12CA Cooling Represent is a miniature, specialized DC brushless axial fan optimized for confined enclosures. Below is the complete, comprehensive technical breakdown of its operational attributes, material compositions, and part number architectural logic.
    • Features:
      • Slim 10mm low-profile depth engineered specifically for micro-slots. Includes an integrated 12-inch tail ending in a 3-pin motherboard connector capable of tachometer RPM signal tracking. Packages include a 3-to-4-pin Molex pass-thru power adapter to allow direct connection to legacy PC power supplies.
    • Applications:
      • Deployed as an active heat-dissipation solution in 1U/2U rackmount microservers, external 3.5" HDD arrays, compact network routers, micro-projectors, standalone chipset heatsinks, and small form factor (SFF) desktop units..
  • EC3010M12CA Part Number Breakdown:
    • 'EC' Evercool Thermal Co., Ltd. standard series identifier
    • '3010' Denotes frame dimensions: 30mm x 30mm profile face with a 10mm chassis depth
    • 'M' Performance tuning index: Medium Speed (calibrated to 8,000 RPM)
    • '12' Specifies nominal working voltage requirement: 12 Volts DC
    • 'C' Specifies standard 1-Ball Bearing infrastructure combined with a standard multi-wire monitoring setup
    • 'A' Factory bundle revision denoting the inclusion of the 3-pin to 4-pin Molex pass-thru adapter accessory
  • Serial Number Available or Sold:
    • SN 0100412 New
    • SN 0100413 New
