Features Applications Voltage Amperage RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

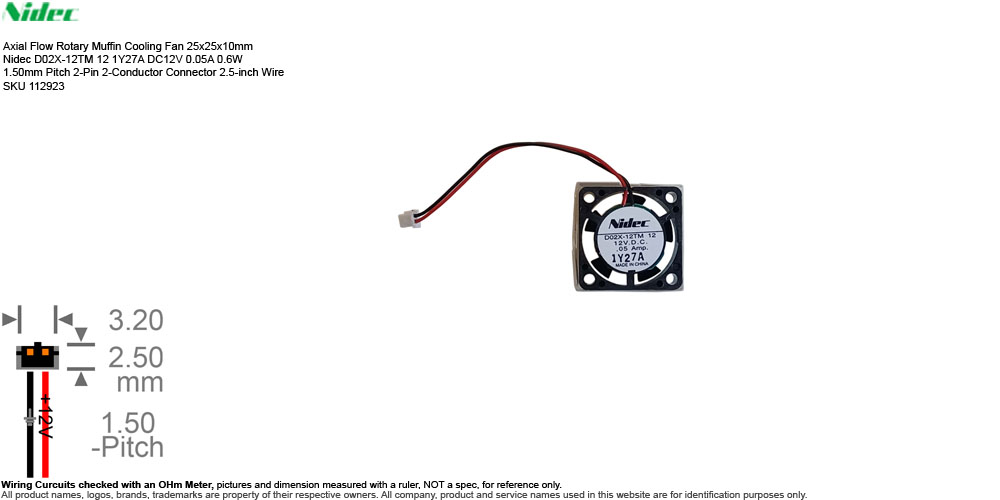

• Description: Axial Flow Rotary Muffin Cooling Fan 25x25x10mm Nidec D02X-12TM 12 1Y27A DC12V 0.05A 0.6W 1.50mm Pitch 2-Pin 2-Conductor Connector 2.5-inch Wire SKU 112923
• Manufacturer: Nidec Corporation
• Brand or Distributor:
  • Nidec / Sony
• Model:
  •  Nidec D02X-12TM 12 1Y27A
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 25x25x10mm
  • Power Rating: DC12V 0.05A 0.6W
  • Bearing: NBR Bearing (Advanced Nidec Bearing Revolution)
  • Speed: 12,000 RPM
  • Air Flow: 2.15 CFM
  • Noise Level: 21 dB(A)
  • Material: FRP Fiber-Reinforced Plastic
    • Frame Housing: FRP Fiber-Reinforced Plastic
    • Impeller Blades: FRP Fiber-Reinforced Nylon / Plastic blend
  • Connection: 1.5mm Pitch 2-Pin 2-Conductor Female Connector
  • Wire Length: 2.5-inch
• Weight: 0.3 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, pulled from unsold Hard Drive Tray
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The  Nidec D02X-12TM 12 is a compact, high-efficiency micro-axial DC cooling fan manufactured by Nidec Corporation.
    • Features:
      • Features a standard 2-wire lead interface, low-vibration construction, high-speed rotational efficiency, energy conservation, and strict compliance with global RoHS environmental directives.
    • Applications:
      • Purpose-built for targeted heat dissipation within space-restricted configurations. Common implementations include enterprise servers, dense networking hardware, medical equipment, compact telecom setups, power inverters, and embedded automation computers.
  •  D02X-12TM 12 1Y27A Part Number Breakdown:
    • 'D02X' Identifies Nidec's general-use miniature brushless axial DC fan framework with an outer footprint of 25 x 25 mm
    • '-12' Factory configuration marker defining the thin 10 mm frame depth
    • 'TM' Designates the specific performance tier, identifying this variant as a Top/High Speed model running up to 12,000 RPM
    • '12' Dictates standard nominal operating power of 12 Volts DC
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '1Y27A' An internal manufacturing lot production code recording the specific Nidec assembly line, factory shift, and localized date of production
  • Pulled from Sony StorStation LIB-81 AIT Library (Advanced Intelligent Tape Library)
  • Serial Number Available or Sold:
    • SN 0098555 Used
