Features Applications Voltage Amperage RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

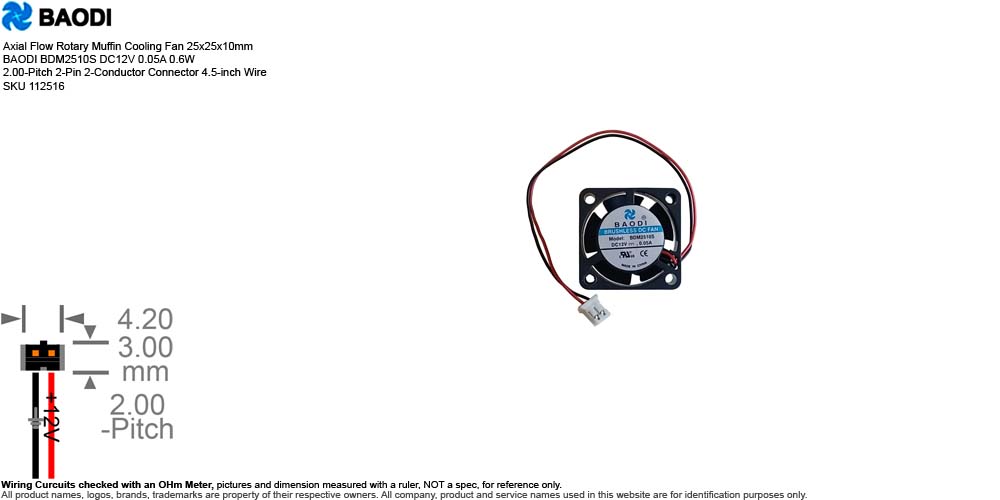

• Description: Axial Flow Rotary Muffin Cooling Fan 25x25x10mm BaoDi BD2510S DC12V 0.05A 0.6W 2.00mm Pitch 2-Pin 2-Conductor Connector 4.5-inch Wire SKU 112516
• Manufacturer: BaoDi / BaoDi Motor / BaoDi Kai
• Brand or Distributor:
  • BaoDi
• Model:
  • BaoDi BD2510S
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 25x25x10mm
  • Power Rating: DC12V 0.05A 0.6W
  • Bearing: Sleeve Bearing
  • Speed: ~8,000 to 10,000 RPM
  • Air Flow: 2.0~2.5 CFM
  • Noise Level: ~22 to 26 dB
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2.00mm Pitch 2-Pin 2-Conductor Female Connector
  • Wire Length: 4.5-inch
• Weight: 0.3 oz (estimated shipping weight 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, pulled from unsold Hard Drive Tray
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The BaoDi BD2510S (commonly referred to as the BD2510S) is a micro brushless DC axial cooling fan primarily manufactured by BAODI (Baodi Kai). It is designed for tight spaces requiring local thermal management.
    • Features:
      • Built with a highly compact frame, integrated polarity protection (brushless DC design), lightweight structure, and designed to be mounted directly onto small heatsinks or chips.
    • Applications:
      • Most commonly used in 3D printer hotends/extruders (like Bambu Lab components), micro-projectors, network routers, small single-board computers (Raspberry Pi cases), VR headsets, and compact CCTV systems.
  • BD2510S Part Number Breakdown:
    • 'BD / BDM' Manufacturer / Series BaoDi (or BaoDi Motor / Baodi Kai)
    • '25' Frame Width / Height Measures 25mm x 25mm
    • '10' Frame Thickness (Depth) Measures 10mm deep
    • 'S' Bearing Type Sleeve Bearing (whereas "B" denotes Ball Bearing)
  • Serial Number Available or Sold:
    • SN 0078529 New
