Features:

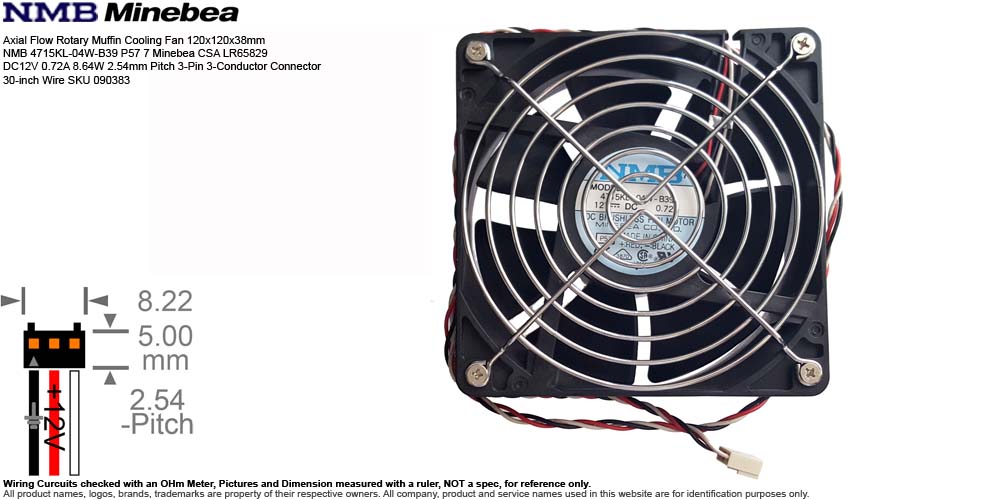

• Description: Axial Flow Rotary Muffin Cooling Fan 120x120x38mm NMB 4715KL-04W-B39 P57 7 Minebea CSA LR65829 DC12V 0.72A 8.64W 2.54mm Pitch 3-Pin 3-Conductor Connector 30-inch Wire SKU 090383
• Manufacturer: Minebea Co., Ltd.
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB Minebea
• Model:
  • NMB 4715KL-04W-B39 P57 7
  • CSA LR65829
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 120x120x38mm
  • Power Rating: DC12V 0.72A 8.64W
  • Bearing: Dual Ball Bearing
  • Speed: 3200~3400 RPM
  • Air Flow: 115~118 CFM
  • Noise Level: 46.5 dB(A)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 30-inch
• Weight: 10.7 oz (estimated shipping weight 15 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • NMB 4715KL-04W-B39 P57 7 is a high-reliability 92mm DC cooling fan for chassis cooling, power supplies, and industrial equipment, featuring a dual ball bearing for longevity.
    • '4715' refers to the frame width and height , Roughly 4.7 inches  translates to the industry standard 119mm x119mm casing size commonly called a 120mm fan..
    • 'KL' indicates the 'K' series with long-life ball bearing.
    • '04W' specifies 12V DC operation.
    • 'B' Refers to standard high-efficiency DC ball bearing fan lines.
    • '3' Explicitly marks the speed / power ranking, ranging from B10up to B50+, the B30 level represents a high-output industrial class balanced for continuous air delivery.
    • '9' Signifies an integrated Locked Roter Sensor output cataloged as an Alarm signal.
    • 'P57' is a custom project / specification code indicating that the fan was manufactured to the precise proprietary requirements of an OEM (Original Equipment Manufacturer like Cisco, HP, Schneider Electric..
    • '7' indicates the manufacturer series or the plant code.
  • Serial Number Available or Sold:
    • SN 0090383 Used
