Features:

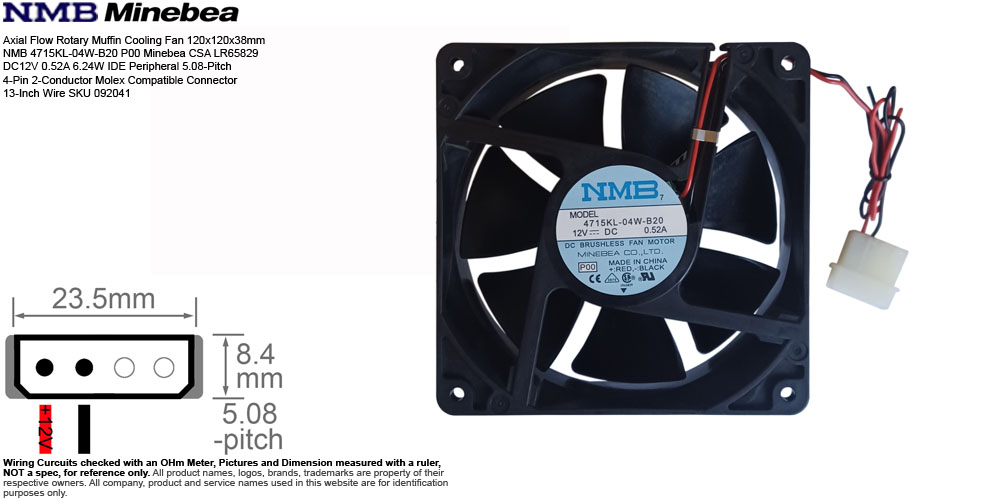

• Description: Axial Flow Rotary Muffin Cooling Fan 120x120x38mm NMB 4715KL-04W-B20 P00 7 Minebea CSA LR65829 DC12V 0.52A 6.24W IDE Peripheral 5.08-Pitch 4-Pin 2-Conductor Molex Compatible Connector 13-Inch Wire SKU 092041
• Manufacturer: Minebea / Mitsumi
• Brand or Distributor: NMB / Minebea / Mitsumi
• Model:
  • NMB 4715KL-04W-B20 P00 7
  • CSA LR65829
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 120x120x38mm
  • Power Rating: DC12V 0.72A 8.64W
  • Bearing: Dual Ball Bearing
  • Speed: 2650 RPM
  • Air Flow: 97 CFM
  • Noise Level: 46.5 dB(A)
  • Connection: IDE Peripheral 5.08-Pitch 4-Pin 2-Conductor Molex Compatible Connector
  • Wire Length: 13-inch
• Weight: 9 oz (Estimated Shipping Weight 14 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • NMB 4715KL-04W-B20 P00 7 is a mid-range 12V DC Axial Cooling Fan featuring a standard heavy-duty 119mm x119mm x 38mm (12038) chassis.Compared to the high-airflow B39 version, the B20 variant is optimized for lower noise, reduced current draw, and stable continuous cooling.
    • '4715' refers to the frame width and height , Roughly 4.7 inches  translates to the industry standard 119mm x119mm casing size commonly called a 120mm fan..
    • 'KL' indicates the 'K' series with long-life ball bearing.
    • '04W' specifies 12V DC operation.
    • 'B' Refers to standard high-efficiency DC ball bearing fan lines.
    • '2' Explicitly marks the speed / power ranking, ranging from B10up to B50+, the B20 level represents a mid-range tier rated at 2650 RPM.
    • '0' Signifies a standard 2-Wire configuration with no integrated sensor.
    • 'P00' indicates that the fan adheres strictly to NMB's Standard Catalog Specifications. It is sold globally to retail distributors
    • '7' indicates the manufacturer series or the plant code.
  • Pulled from Supermicro Server Computer
  • Serial Number Available or Sold:
    • SN 7022943 Used
