VGA & Audio Extender over CAT5

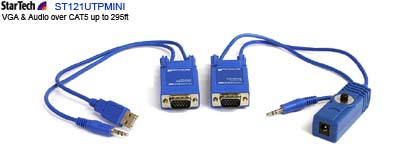

StarTech ST121UTPMINI (TX & RX)
up to 295ft (90M)
 EX-VGA-C5-ST121-MINI

Extend a VGA signal with audio to a remote display over Cat 5 or better cabling with this small form-factor device.

Links:

Overview:

The ST121UTPMINI Mini VGA Video and Audio Extender over Cat 5 provides a complete high resolution point-to-point digital signage solution, comprised of one local transmitter and one remote receiver.

Simply connect the local (transmitter) unit to the VGA video and audio source, and the remote unit to a VGA display up to 90 meters (295 feet) away. To start extending the VGA and audio signal, create a point-to-point connection by using Cat 5 / Cat 6 UTP cable.

The Cat 5 VGA extender provides a cost-effective way to situate your display as needed, eliminating standard distance limitations for a more effective digital signage configuration. This small form factor extender is compact enough to be tucked away behind the display even when space is limited.

Features:

  • Transmit VGA Video and Audio through a single Cat 5 or better cable

  • Supports resolutions up to 1920x1200 at 90m / 295ft

  • USB Powered Local / Transmitter unit – no external AC adapter required

  • Receiver has a built in equalizer for fine tuning image quality

  • Pure hardware design, no software or drivers required

Application:

  • Perfect for tight spaces or when a boxed VGA extender is not convenient for the installation

  • Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard

  • Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment

  • Ideal for digital signage applications in educational, corporate, retail, healthcare, and hospitality sectors

  • Perfect for video conferencing solutions in boardrooms and office settings

  • Optimize placement of your demo stations at trade-shows and in auditoriums

Specifications:

Local Unit Connectors 1 - RJ-45 Female
Local Unit Connectors 1 - VGA (15 pin; High Density D-Sub) Male
Local Unit Connectors 2 - USB A (4 pin) Male
Warranty 2 Years
Remote Unit Connectors 1 - RJ-45 Female
Remote Unit Connectors 2 - VGA (15 pin; High Density D-Sub) Female
Maximum Cable Length 295.2 ft [90 m]
Center Tip Polarity Positive
Cabling Category 5e UTP or better
Color Blue
Connector Type(s) 1 - USB A (4 pin) Male
Connector Type(s) 2 - 3.5 mm Mini-Jack (3 Position) Male
Connector Type(s) 2 - DB-15 (15 pin; D-Sub) Male
Connector Type(s) 2 - RJ-45 Female
Enclosure Type Aluminum
LED Indicators 1 - Power and Video Status
Local Unit Connectors 1 - 3.5 mm Mini-Jack (3 Position) Male
Ports 1
Power Adapter Included Yes
Remote Unit Connectors 1 - 3.5 mm Mini-Jack (3 Position) Male
Maximum Analog Resolutions 1920x1200
Input Voltage 110 ~ 240 AC
Output Voltage 5 DC
Output Current 1000mA
Plug Type M
Shipping (Package) Weight 15.18 oz [430 g]
Carton Quantity 36
Note This product ships with a single AC adapter to be used on the remote end. The local extender unit is powered by an available USB port.
