Cat. No.
|
Description
|
|
47605-28N
|
Structured
Media Center, Series 280 Enclosure Only |
|
47605-28G
|
Series 280
enclosure without cover, must be ordered in quantities of
3-bulk cof: white. pkd: 3/leviton unit box |
|
47605-M28
|
28”
Structured Media Center for MDU Applications, Configuration
B, Enclosure only, White |
|
47605-28W
|
Structured
Media Center, Series 280 Enclosure and Flush-mount Cover
|
|
47605-2MG
|
28”
Structured Media Center for MDU Applications, Configuration
A, Enclosure and Flush Mount Cover, White |
|
47612-28B
|
28”
Structured Media Center Extender Bracket |
|
5L000-KAL
|
Locks can
be added to both front and rear doors on Opt-X 1000i
Enclosures. |
|
47605-28B
|
flush mount
cover for series 280 structured media center must be ordered
in quantities of 3 cof: white. pkd: 3/leviton unit box
(shippable). |
|
47605-F28
|
Structured
Media Center, Series 280 Flush-mount Cover |
|
47605-28P
|
Structured
Media Center, Premium Hinged Cover with Trim Ring for Series
280. Color White. |
|
47605-28D |
Structured
Media Center, Series 280 Hinged Cover - New |
|
47605-2BP
|
28”
Structured Media Center Pre-Fab Back Plate, White
|
|
47605-2PL
|
28" Premium
Hinged Door w/ Lockset |

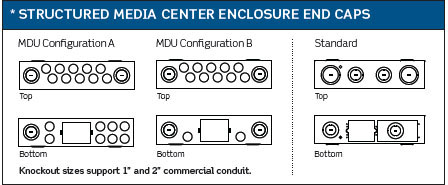

Drawing: ( Standard and Optional End-Cap Configuration
for SMC-280, SMC-420 Series )
Structured Media® Center, 28 in.
Leviton's SMC-280 28"
high unit accommodates home networking, fax, internet, multi-line
telephones, security camera, coaxial cable and satellite video
distribution, speaker and audio distribution.
The Series 280 enclosure can comfortably accommodate up to 12
different Distribution Modules, depending on selection and density
and is designed to incorporate a hospital-grade power quality module
for maximum protection from line surges. Leviton's Series 280
enclosure is packaged separately or as part of kit that includes a
flush-mount cover. Flush-mount covers are also sold separately. For
easier access and added security, hinged covers (with an optional
lock and key set) are available and sold separately. cULus and ACA
listed; complies with all TIA/EIA 568-A and TIA/EIA 570-A
requirements, and meets FCC part 68.
*Module count will depend on the type used; some are larger than
others.
Features:
-
Multiple knock-outs on top, bottom, sides and back facilitate
cable entry and routing from every desired room.
-
Sturdy, one-piece white steel construction.
-
Combine two or more enclosures for larger installations or
future expansions.
-
Holds 1/4, 1/2 and full-width expansion modules with the ability
to mount most modules vertically or horizontally.
-
Large capacity provides multiple functionality for ''wired''
homes.
-
Powder-coated white flush-mount and hinged covers feature a
3/4'' overlap to hide irregular drywall cuts.
-
Hinged cover opens 180 degrees and mounts on right or left side
for easy-access in tighter spaces.
-
An optional lock and key set are available for the hinged cover
to offer added security.
-
Mounting hooks on the cover align screw-holes and reduce the
chances of dropping during attachment.
-
Holds a broad range of current and future distribution modules,
delivering audio, video, voice, data, security, home controls and
more to any room of the home or office.
-
Can be surface-mounted or recessed. Ideal for new installations
or retrofits.
-
Designed to accommodate safe, high-quality hospital-grade surge
and non-surge AC power modules and J-Box kits.
|
