Wireless Printing

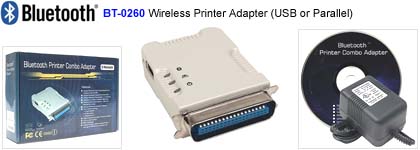

BT-0260 Bluetooth Printer Combo Adapter
( USB or Parallel )
WLS-BTH-PRT-BT0260


Featuring Bluetooth wireless technology. Bluetooth Printer Combo Adapter creates cable-free connection between your PCs / PDSs and printers. Bluetooth Printer Combo Adapter is compatible with all Bluetooth v1.1 certified devices and you can connect your computing devices and printers up to 100 meters away without cables in your working environments such as home or office. Enjoy the freedom and flexibility of Bluetooth technology - Wireless Printing.

* 100 meters is dependent on environment, other wireless devices, and number of users within proximity.
* HP Host-Based and Lexmark Z25, Z35 series printers are NOT supported)
* Certain printers (commonly referred to as "winprinters," even though they may be compatible with certain versions of Mac OS) use the host computer to do much of their processing (they cannot work without a direct connection to the PC).  These types of printers will not work with this dongle.  We cannot support every possible printer that one may try with this dongle.

Features:
> Support Bluetooth Hard Copy Replacement Printing Profile (HCRP).
> Support Bluetooth Serial Port Profile (SPP).
> Support Bluetooth Specification 1.1 Standard.
> Operate in 2.4 GHz ~ 2.483 GHz ISM Band.
> Support Two Printer Interfaces: USB and Parallel Port (1284).
> Support Widcomm Bluetooth Software.
> Three LEDs Indicating:
   * Power ON/OFF
   * Printer Action
   * Bluetooth Link
> Wide Coverage with Class 1 Bluetooth Module.
> FCC and CE Certified.
> BQB Certificated.
> Support All Major USB Compliant Printers such as HP, EPSON, Canon, Brother, ... etc.

Specifications:
> Certification: FCC, CE, BQB
> Standard: Bluetooth v1.1
> Bluetooth Profiles: SPP v1.1, HCRP v1.0
> Frequency Band: 2.4 ~ 2.4835 GHz unlicensed ISM band
> Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
> Data Rates: 1M maximum
> RF Output Power: Class 1:13dBm typical
> Antenna: Embedded PCB antenna
> Working Distance: Up to 100m in free space
> Sensitivity: < -88dBm at < 0.1% BER
> Input Power: 7.5VDC
> Printer Interface: USB and IEEE-1284 Parallel Port
> LED Indicators: Power / Bluetooth status / Printer status
> Supported Printer: HP, EPSON, Canon, Brother and others
> USB Port: Support Printer Class
> OS Support: Windows XP, 2000, Me, 98SE
> Operating Temperature: 0 ~ 60°C
> Storage Temperature: -10 ~ +70°C
> Humidity: 5 ~ 90% (non-condensing)
> Size: 81(L) x 54(W) x 21(H) mm

Package Includes:
> Bluetooth Printer Combo Adapter
> 7.5VDC Power Supply
> Quick Start Manual
> Utility CD

System Requirements:
> PC / PDA must have a Bluetooth device installed such as a Bluetooth Dongle or Bluetooth CF card.
> PC / PDA can optionally install Widcomm Bluetooth drive.
> PDA must have additional printing software.
> Printers must follow USB Printer Specification 1.1

All right reserved. All trade names are registered trademarks of respective manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc.
