Butt Splice

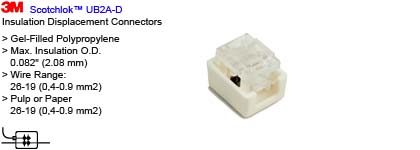

3M Scotchlok™ UB2A-D
Tap Connector
 Splice-Butt-3M-UB2A-D

Link(s):

Introduction:

UB2A/UB2A-D connectors have a pre-crimp feature that gives the craftsperson a time-saving edge. By positioning the connector on the conductor and pre-crimping, the conductor is prevented from slipping out of the connector before the crimp is completed.

Features:

Features Gel-Filled Polypropylene RUS Listed
Max. Insulation O.D. 2.08mm (0.082")
PIC-Unfilled & PIC-Filled 26-19 (0.4-0.9 mm2)
Pulp or Paper

26-19 (0.4-0.9 mm2)
Suggested 3M Tool xxx

Specification:

Cable Type PIC, PULP, PAPER
China RoHS Below MCV Yes
Conductor Sizes 26 - 19 AWG
Composition Dry
Connection Type Bridge Tap / 2 Conductor
EU RoHS Compliant Yes
Flame Retardant No
Maximum Insulation Outer Diameter .082 Inch
Operating Temperature Range -40 to 285 Degree Fahrenheit
Product Family IDC for Communications Applications
RUS Listed Yes / BA
