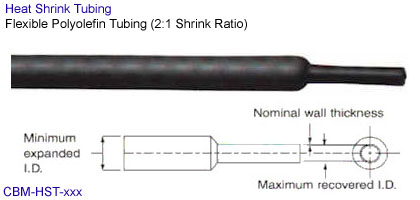

Heat Shrink Tubing
Flexible Polyolefin Tube 2:1 Shrink Ratio
CBM-HST-xxx

Heat Shrink Tubing can be used for many different applications. Due to the wide range of uses there are many different heat shrink tubing which each meet the demands of an individual application. Instead of standard approaches to insulation, such as taping or molding in place, tubing, when heated, shrinks to conform to the size and shape of the underlying material making installation fast and easy. Tubing comes a in wide range of sizes, colors, and materials.

Tubing provides superior insulation, strain relief and protection against mechanical damage and abrasion.

Product Family:
> Size 1/16 inch - Expanded I.D.: 0.063-inch (  1.60 mm), Recovered I.D.: 0.031-inch (  0.79 mm)
> Size 3/32 inch - Expanded I.D.: 0.093-inch (  2.35 mm), Recovered I.D.: 0.046-inch (  1.17 mm)
> Size   1/8 inch - Expanded I.D.: 0.125-inch (  3.18 mm), Recovered I.D.: 0.062-inch (  1.57 mm)
> Size 3/16 inch - Expanded I.D.: 0.187-inch (  4.75 mm), Recovered I.D.: 0.093-inch (  2.36 mm)
> Size   1/4 inch - Expanded I.D.: 0.250-inch (  6.35 mm), Recovered I.D.: 0.125-inch (  3.18 mm)
> Size   3/8 inch - Expanded I.D.: 0.375-inch (  9.53 mm), Recovered I.D.: 0.187-inch (  4.75 mm)
> Size   1/2 inch - Expanded I.D.: 0.500-inch (12.70 mm), Recovered I.D.: 0.250-inch (  6.35 mm)
> Size   3/4 inch - Expanded I.D.: 0.750-inch (19.05 mm), Recovered I.D.: 0.375-inch (  9.53 mm)
> Size      1 inch - Expanded I.D.: 1.000-inch (25.40 mm), Recovered I.D.: 0.500-inch (12.70 mm)
