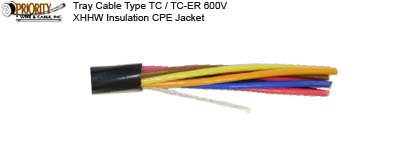

Tray Cable Type TC / TC-ER (Exposed Run) 600V
XHHW Insulation (
Cross-Linked High Heat Water Resistant Insulated Wire)
CPE Jacket
CB-TC-xxx

Download

Reference List (click to open)

Application:
Power, control, signal, communication and lighting circuits, For installation in cable trays in accordance with Article 336. Cable is approved for use in raceways, supported by messenger wire in open air, for direct burial applications, in Class I & II division 2 hazardous locations and for Class 1 circuits as permitted in Article 725.11(b). May be installed in both wet and dry locations or in areas exposed to chemicals and oils.

Conductors:
Soft bare annealed copper per ASTM B-33, Class B stranding per ASTM B-8.

Insulation:
Heat and moisture resistant Cross-linked Polyethylene (FR-XLPE) VW-1 XHHW-2 per UL 44.

Color Code:
ICEA Method 1, E2 - E1 available upon request (Formerly K2 or K1)

Assembly:
Conductors are cabled together with or without fillers as required to form a round, compact cable core and with a binder tape.

Jacket:
Sunlight resistant black Chlorinated Polyethylene CPE rated 90°C per UL 1277.

Flame Test:
IEEE 383 70,000 BTU vertical tray flame test, IEEE 1202 70,000 BTU flame test, Insulated conductors pass VW-1 flame test, ICEA-T-29-520 210,000 BTU flame test.
