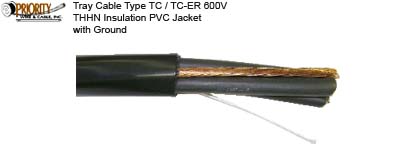

• Spec - Priority Tray Cable (Type TC) TC-ER THHN PVC with Ground 12AWG~500MCM

Reference List (click to open)

Application:
General purpose multi-conductor 600V power cables used for primary power/feeder circuits. For installation in cable trays in accordance with Article 336. Cable is approved for use in raceways, supported by messenger wire in open air, for direct burial applications, in Class I & II division 2 hazardous locations and for Class 1 circuits as permitted in Article 725.11(b). May be installed in both wet and dry locations or in areas exposed to chemicals and oils.

Conductors:
Soft bare annealed copper per ASTM B-3, Class B stranding per ASTM B-8

Insulation:
Heat and moisture resistant Polyvinylchloride (PVC) per UL 62. Clear Polyamide (Nylon) jacket per UL 62.

Ground:
Soft bare annealed copper per ASTM B-3, Class B stranding per ASTM B-8.

Color Code:
ICEA Method M4 (black and numbered)

Assembly:
Conductors and ground are cabled together with or without fillers as required to form a round, compact cable core and with a binder tape.

Jacket:
Sunlight resistant black PVC rated 90°C per UL 1277.

Flame Test:
IEEE 383 70,000 BTU vertical tray flame test.
