Features:

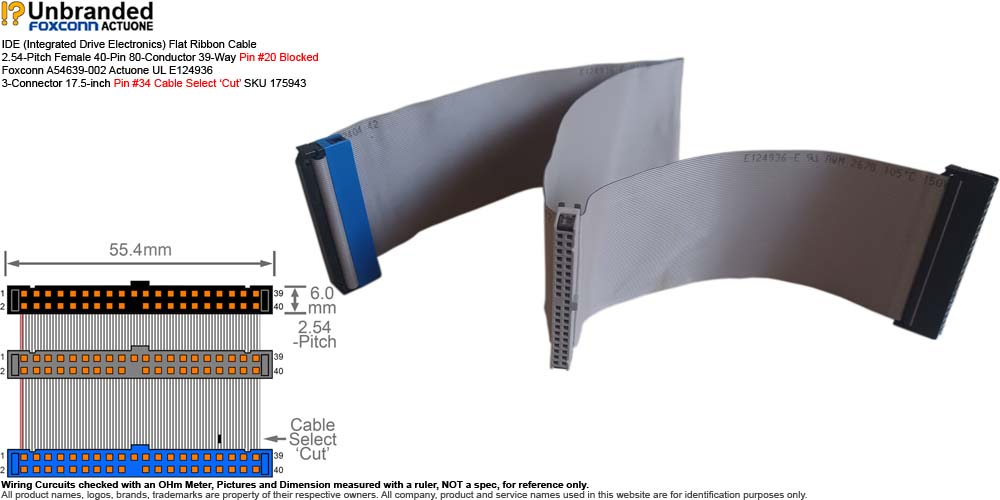

• Description: IDE (Integrated Drive Electronics) Flat Ribbon Cable 2.54-Pitch Female 40-Pin 80-Conductor 39-Way Pin #20 Blocked Unbranded Foxconn A54639-002 Actuone UL E124936 3-Connector 17.5-inch Pin #34 Cable Select ‘Cut’ SKU 175943
• Manufacturer: Foxconn / Actuone Cable & Wire
• Brand Name or Distributor: Gigabyte
• Model:
  • Foxconn A54639-002
  • Actuone UL E124936
• Connectors:
  • IDE 2.54-Pitch 40-Pin 39-Way Female Black to Primary Master Drive
  • IDE 2.54-Pitch 40-Pin 39-Way Female Gray to Secondary Slave Drive
  • IDE 2.54-Pitch 40-Pin 39-Way Female Blue to System
• Overall Wire Length: 17.5-inch
  • 11 inch: Mother Board (Blue Connector) to Slave Drive (Gray Connector)
  •   5 inch: Slave Drive (Gray Connector) to Master Drive (Black Connector)
• Weight: 1.9 oz (estimated shipping Weight: 5 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box, not been used, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • For use with storage devices and optical drives to a computer's motherboard, widely used before SATA became the standard
  • The “cut” in an IDE/PATA cable related to Cable Select (CS) is a purposeful design tweak that enables automatic master/slave configuration.
    • Pin 28: On a true cable select (CS) cable, pin 28 is intentionally disconnected on the middle connector to designate the connected drive as the slave.
    • Pin 34 (Presence of 80-conductor cable): With the introduction of faster Ultra DMA (UDMA) speeds, standard 40-pin IDE cables were replaced with 80-conductor cables. These 80-conductor cables have 40 extra ground wires to reduce crosstalk and improve signal integrity. To let the host controller know an 80-conductor cable is in use, pin 34 is grounded. For this to work correctly, the wire for pin 34 is often cut on the device side of the cable.
  • Serial Number Available or Sold:
    • SN 0091571~0091580 Used
