Features:

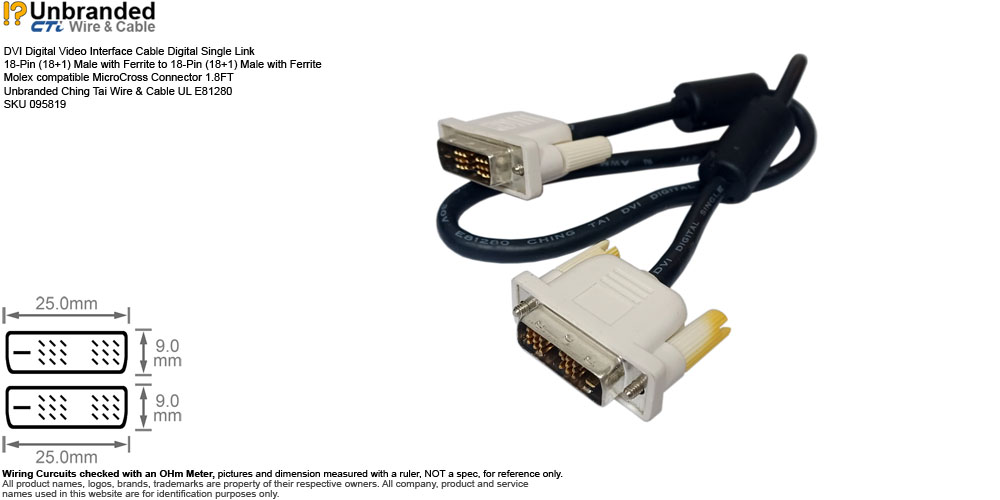

• Description: DVI Digital Video Interface Cable Digital Single Link 18-Pin (18+1) Male with Ferrite to 18-Pin (18+1) Male with Ferrite Molex compatible MicroCross Connector 1.8FT Unbranded Ching Tai Wire & Cable UL E81280 SKU 095819
• Manufacturer: Ching Tai Wire & Cable
• Brand or Distributor: Unbranded Ching Tai
• Model: (Compatible, Equivalent, & Interchangeable)
  • Ching Tai Wire & Cable UL E81280
  • Seller's SKU 095819
• Connector:
  • DVI 18-Pin (18+1) Male with Ferrite Molex compatible MicroCross Connector
  • DVI 18-Pin (18+1) Male with Ferrite Molex compatible MicroCross Connector
• Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
  • Straight-Thru
• Cable Marking
  • CTi RU AWM 20276 VW-1 80°C 30V E91280 CHING TAI DVI DIGITAL SINGLE LINK
• Item Length:
  • Overall : 1.8FT (22-inch)
  • Wire: 20.5-inch
• Weight: 3.5 oz (Estimated Shipping Weight: 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box Unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The primary purpose of a DVI Single-Link (DVI-D Single-Link) cable is to transmit pure, uncompressed digital video from a source device (like an older computer graphics card) to a digital display (such as an LCD monitor or projector). It was designed to replace noisy analog VGA connections by matching pixels directly from the video card to the screen panel.
    • Single TMD's Link: It uses a single Transition Minimized Differential Signaling (TMDS) transmitter. This architecture utilize three data channels for primary colors (RGB) and one clock channel.
    • Maximum Resolution: Limited to a maximum of 4.95 Gbps. This supports a top resolution of 1920 x1200 at 60Hz or 1080p at 60Hz.
    • Pin Configuration: It features 18 digital pins arranged in two distinct 3x3 blocks, with a central gap of 6 missing pins (unlike the solid 24-pin grid found on Dual-Link cables)
    • Flat Ground Bar: The right side features a single flat ground blade with no analog pins surrounding it, preventing it from passing legacy analog signals.
    • Forward Compatibility: Because it uses the exact same digital video signaling protocols as HDMI, a DVI Single-Link cable can be adapted to an HDMI port using a simple passive adapter or adapter cable (though it will not carry audio).
  • Serial Number(s) Available or Sold:
    • SN 0112055 Used
    • SN 0112056 Used
    • SN 0112057 Used
    • SN 0112058 Used
