Serial UPS Power Management Communication Cable
D-Sub 2.77-Pitch DB9 9-Pin Female to Male Partial Straight-Thru 5-Wire
Transmit-Only Hardware Handshaking
Unbranded Molded Connector 4FT SKU 093930
CB-DB9F-DB9M-xxx

 Features:
  • Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male Partial Straight-Thru 5-Wire Transmit-Only Hardware Handshaking Unbranded Molded Connector 4FT SKU 093930
  • Manufacturer: Stone Cable & Wiring Hong Kong Co., Ltd.
  • Brand Name or Distributor: Unbranded
  • Model: (Equivalent & Compatible)
    • Seller's SKU 153914
  • Connector:
    • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
    • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector

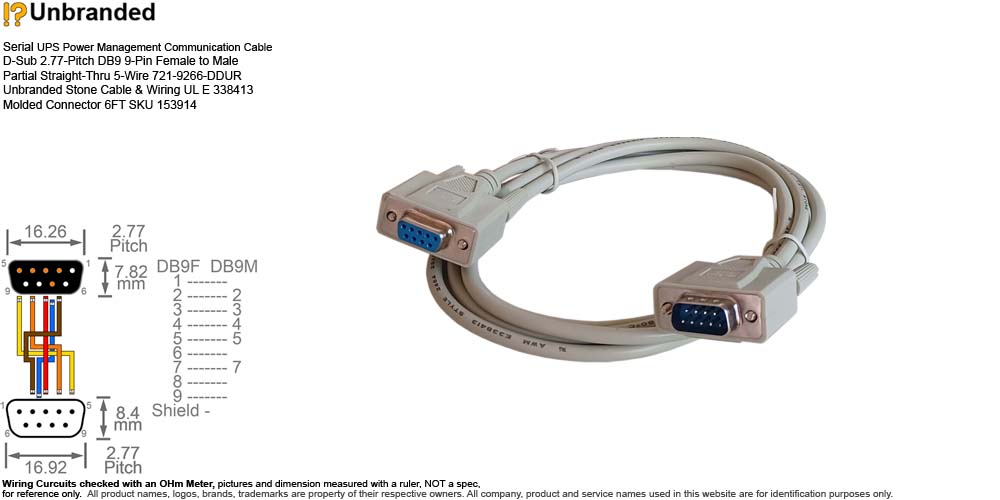

  • Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
    • Partial Straight-Thru 5-Wire (Pin 8 Not Connected, Automatic Shutdown Feature will not trigger)
      • DB9F 1 - NC
      • DB9F 2 - DB9M 2
      • DB9F 3 - DB9M 3
      • DB9F 4 - DB9M 4
      • DB9F 5 - DB9M 5
      • DB9F 6 - NC
      • DB9F 7 - DB9M 7
      • DB9F 8 - NC
      • DB9F 9 - NC
      • Shield   - NC
  • Cable Marking:
    • RU AWM E338413 STYLE 2464 26AWG 80°C300V VW-1 STONE
  • Item Length:
    • Overall : 6FT
    • Wire: 5.6FT
  • Weight: 4.1 oz (estimated shipping weight 8 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Unused Open Box, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
    • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, with signs of cosmetic wear.
  • Package: Non-retail packaging, in Unprinted or Reused Box or Plastic Bag.
  • For use with or pulled from: (for reference only)
    • UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
    • The part number is a known accessory for Digi International routers and terminal servers. This modified 721-9266-DDUR is essentially a clone of the APC 940-0024 but missing Pin 8 leaves the 'shutdown trigger' pins Not Connected.
    • Serial Number(s) Available or Sold:
      • SN 0099185 For Parts, Unused Open Box
