Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male Partial Straight-Thru 3-Wire Basic Communication not for Flow Control Unbranded Molded Connector 3.75FT SKU 160054

Serial UPS Power Management Communication Cable
D-Sub 2.77-Pitch DB9 9-Pin Female to Male
Partial Straight-Thru 3-Wire Basic Communication not for Flow Control
Unbranded Molded Connector 3.75FT SKU 160054
CB-DB9F-DB9M-xxx

Features:

Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male Partial Straight-Thru 3-Wire Basic Communication not for Flow Control Unbranded Molded Connector 3.75FT SKU 160054
Manufacturer: Not Specified
Brand Name or Distributor: Unbranded
Model: (Equivalent & Compatible)
- Seller's SKU 160054
Connector:
- D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
- D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector

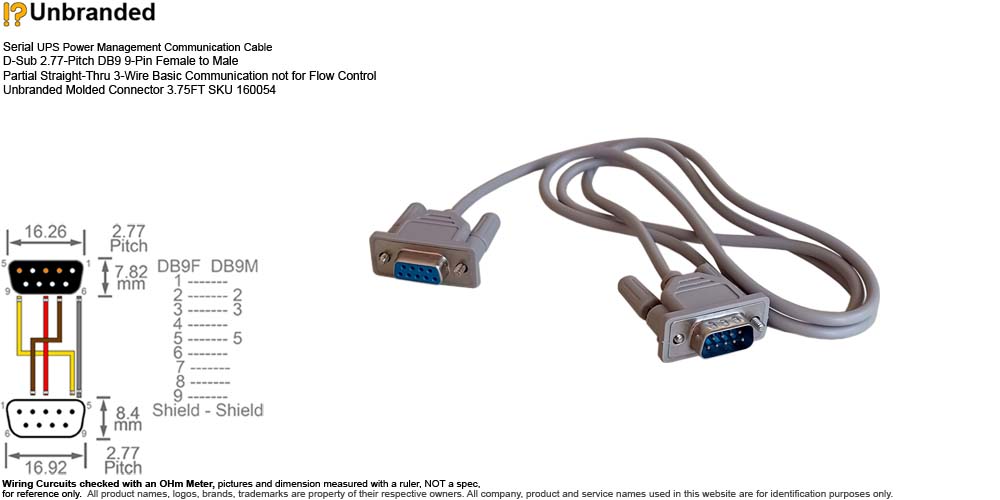

Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
- Partial Straight-Thru 3-Wire Version for Basic Communication (not for Flow Control)
  - DB9F 1 - NC
  - DB9F 2 - DB9M 2
  - DB9F 3 - DB9M 3
  - DB9F 4 - NC
  - DB9F 5 - DB9M 5
  - DB9F 6 - NC
  - DB9F 7 - NC
  - DB9F 8 - NC
  - DB9F 9 - NC
  - Shield - Shield
Cable Marking:
- NA
Item Length:
- Overall : 3.75FT
- Wire: 3.25FT
Weight: 2 oz (estimated shipping weight 5 oz)
Condition: (Subject to Availability)
- SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller repackaged.
- SKU ______E - Excess Inventory, not been used, may have signs of age.
- SKU ______P - For Parts, Used, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
- SKU ______O - Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to working condition.
- SKU ______U - Used, with signs of cosmetic wear.
Package: Non-retail packaging, in Unprinted or Reused Box or Plastic Bag.
For use with or pulled from: (for reference only)
- UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
- Three-Wire version, the simplest form of a straight-thought RS-232 cable, used for basic serial communication when flow control is handled by software (Xon/Xoff) or not required at all.
- Used in
  - External Modems - Traditional modems use this setup for data exchange.
  - Scientific Instruments - Act as DCEs to send data to a computer such as multimeters, power analyzers, multi-channel recorders.
  - GPS Receivers - Older or industrial GPS units frequently use this 3-wire for NMEA data output.
  - Programmable Logic Controllers (PLCs) - Many PLCs use these 3-pins for programming or data logging.
  - Sensors & Actuators - Simple industrial sensors that provide a continuous data stream.
  - Point-of-Sales (POS) Peripheral - Older receipt printers, barcode scanners, and pole displays.
  - Uninterruptible Power Supplies (UPS) - Specifically for basic communication to tell a computer when the power has failed.
  - Audio / Visual Equipment - Many professional AV devices like Extron or Crestron are programmed or controlled via a 3-wire RS-232 connection.
- Serial Number(s) Available or Sold:
  - SN 0092866 For Parts, Used
