Links: HP 295245-001 Spec

Features:

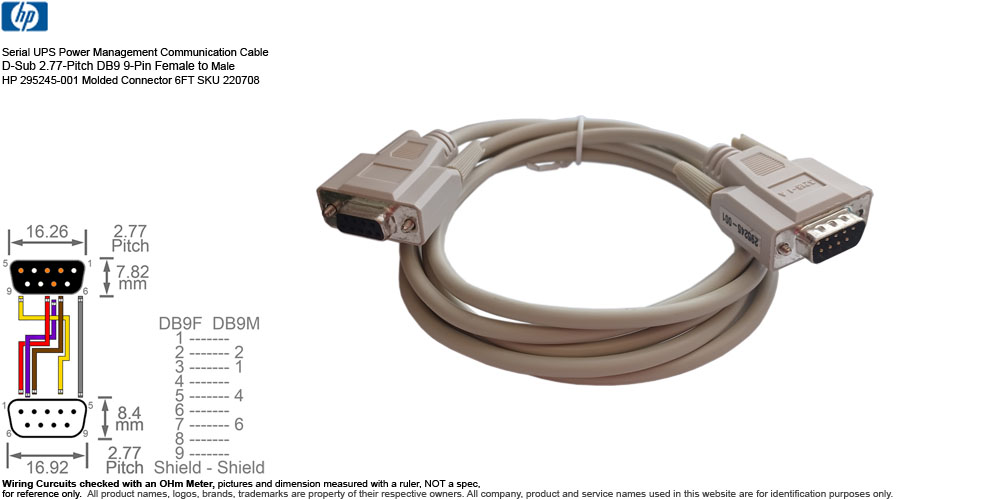

• Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male HP 295245-001 Molded Connector 6FT SKU 220708
• Manufacturer: Not Specified
• Brand Name or Distributor: HP
  • AS: 295245-001
  • Replaced by PN: 295245-003 with extra Grounding
  • Seller's SKU 220708
• Connector:
  • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
  • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector
• Pinout: (Wiring Circuits checked with an OHm Meter, not a Spec, for reference only.)
  • Proprietary UPS Power Management
    • DB9F 1 - NC
    • DB9F 2 - DB9M 2
    • DB9F 3 - DB9M 1
    • DB9F 4 - NC
    • DB9F 5 - DB9M 4
    • DB9F 6 - NC
    • DB9F 7 - DB9M 6
    • DB9F 8 - NC
    • DB9F 9 - NC
    • Shield - Shield
• Item Length:
  • Overall : 6FT
  • Wire: 5.6FT
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Unused Open Box, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Weight: 4.5 oz (estimated shipping weight 7 oz)
• Package: Non-retail packaging, in unprinted box or plastic bag.
• UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
• A proprietary non-standard serial cable to enable 'Smart Signaling' communication between Uninterruptible Power Supply (UPS) and a computer or server. Can be used to monitor UPS performance, battery level, event logging, and to configure UPS parameters, reset battery constants, or perform functional debugging.
• Connecting a standard 'off-the-shelf' DB9  serial cable to many UPS models can cause the UPS to immediately shut down and drop the power load, potentially crashing the connected computers or servers. UPS Console cables are not interchangeable, cables vary by the brand, series, and port type of the UPS.
• Saved from an unsold Compaq UPS Uninterruptible Power Supply
• Serial Number Available or Sold:
  • SN 0099050 Unused Open Box
