Features:

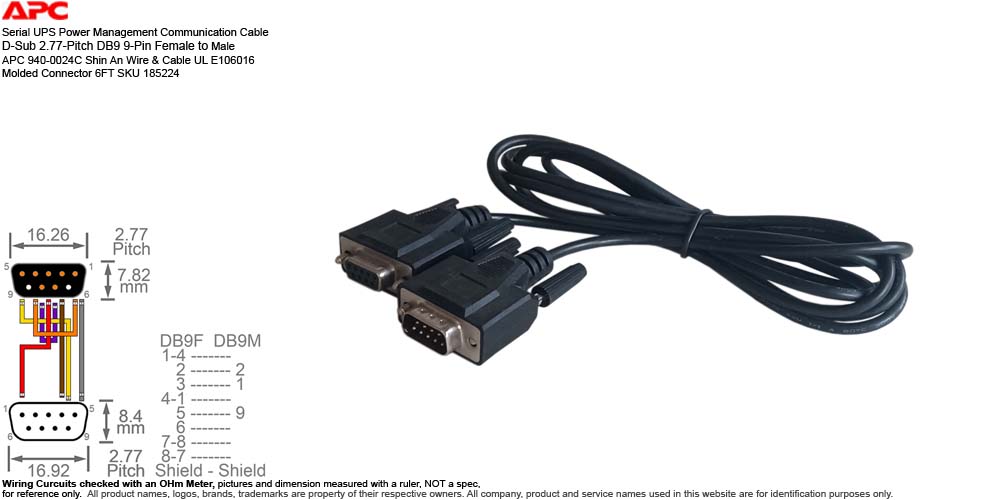

• Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male APC 940-0024C Shin An Wire & Cable UL E106016 Molded Connector 6FT SKU 185224
• Manufacturer: Shin An Wire & Cable Co., Ltd.
• Brand Name or Distributor: APC American Power Conversion Corp.
• Model: (Equivalent & Compatible)
  • 940-0024C
  • Seller's SKU 185224
• Connectors:
  • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
  • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector
• Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
  • Proprietary UPS Power Management
    • DB9F 2 - DB9M 2
    • DB9F 3 - DB9M 1
    • DB9F 5 - DB9M 9
    • Shield - Shield
    • Pin 1 & Pin 4 are shorted together on the Female Connector
    • Pin 7 & Pin 8 are shorted together on the Female Connector
• Cable Marking: RU AWM 2464 E106016 VW-1SC 80°C 300V 28AWG CSA LL80179 AWM I/II A 80°C 300V FT1 28AWG SHIN AN -C-
• Item Length:
  • Overall : 6FT
  • Wire: 5.6FT
• Weight: 3.8 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Unused Open Box, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
  • SKU ______O - Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted or Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
  • A proprietary non-standard serial cable to enable 'Smart Signaling' communication between Uninterruptible Power Supply (UPS) and a computer or server. Can be used to monitor UPS performance, battery level, event logging, and to configure UPS parameters, reset battery constants, or perform functional debugging.
  • Connecting a standard 'off-the-shelf' DB9  serial cable to many UPS models can cause the UPS to immediately shut down and drop the power load, potentially crashing the connected computers or servers. UPS Console cables are not interchangeable, cables vary by the brand, series, and port type of the UPS.
  • For use with APC Smart UPS Series: SU, SUA, and select SURT models.
  • APC 940-0024C (6FT) cable use the same pinout as the 940-1524C (15FT) the only meaningful difference is cable length, not wiring.
  • Serial Number Available or Sold:
    • SN 0099048 Open Box
