Features:

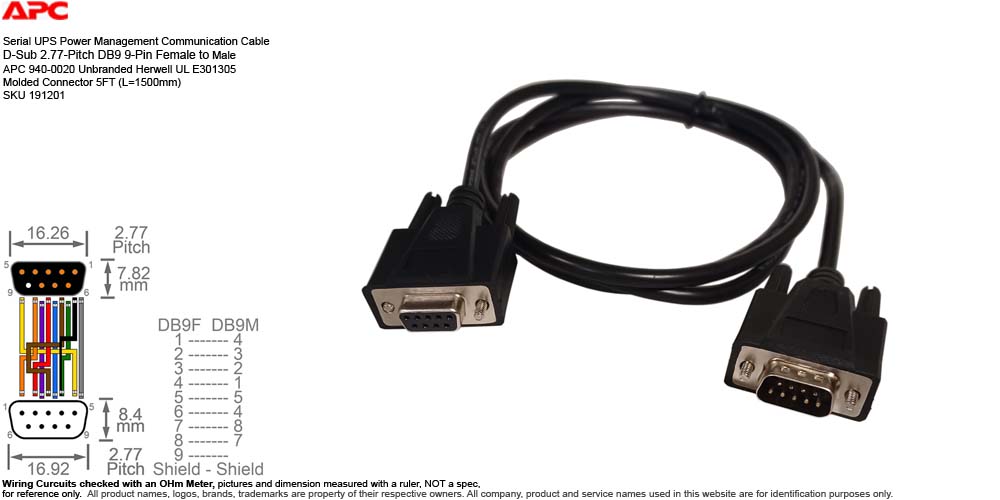

• Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male APC 940-0020 Unbranded Herwell UL E301305 Molded Connector 5FT (L=1500mm) SKU 191201
• Manufacturer: Not Specified
• Brand Name or Distributor: Unbranded
• Model: (Equivalent & Compatible)
  • APC 940-0020 Compatible
  • PN 7.1.91.9005198 Equivalent
  • Seller's SKU 191201
• Connectors:
  • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
  • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector
• Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
  • Proprietary UPS Power Management APC 940-0020 Simple Signaling pinout compatible.
    • DB9F 1 - DB9M 4
    • DB9F 2 - DB9M 3
    • DB9F 3 - DB9M 2
    • DB9F 4 - DB9M 1
    • DB9F 5 - DB9M 5
    • DB9F 6 - DB9M 4
    • DB9F 7 - DB9M 8
    • DB9F 8 - DB9M 7
    • DB9F 9 - NC
    • Shield - Shield
• Cable Marking:
  • E301305 RU AWM STYLE 2464 28AWG 80°C 300V VW-1 --- RU AWM I/II A/B 80°C 300V FT1 HERWELL
• Item Length:
  • Overall : 5FT (1500mm)
  • Wire: 4.6FT
• Weight: 3.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Unused Open Box, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
  • SKU ______O - Open Box, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted or Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
  • Generic Serial UPS Power Management Cable functionally equivalent to the APC 940-0020 cable according to its Simple Signaling pinout.
  • Connecting a standard 'off-the-shelf' DB9  serial cable to many UPS models can cause the UPS to immediately shut down and drop the power load, potentially crashing the connected computers or servers. UPS Console cables are not interchangeable, cables vary by the brand, series, and port type of the UPS.
  • Serial Number Available or Sold:
    • SN 0099045 Open Box
    • SN 0099047 Open Box
    • SN 0099195 Open Box
