Features:

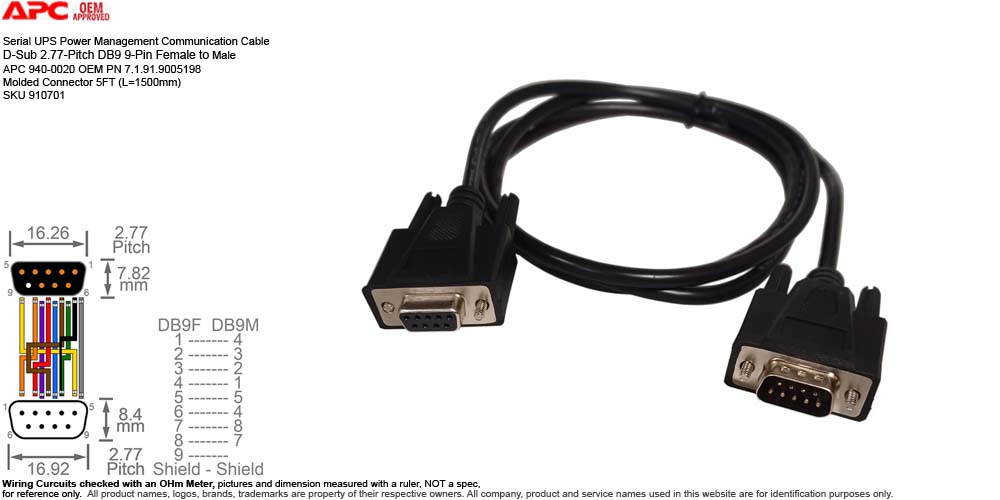

• Description: Serial UPS Power Management Communication Cable D-Sub 2.77-Pitch DB9 9-Pin Female to Male APC 940-0020 OEM PN 7.1.91.9005198 Molded Connector 5FT (L=1500mm) SKU 910701
• Manufacturer: Not Specified
• Brand Name or Distributor: Unbranded
• Model: (Equivalent & Compatible)
  • APC 940-0020 Compatible
  • OEM PN 7.1.91.9005198
  • Seller's SKU 910701
• Connectors:
  • D-Sub DB9 2.77mm Pitch 9-Pin Female Molded Connector
  • D-Sub DB9 2.77mm Pitch 9-Pin Male Molded Connector
• Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
  • Proprietary UPS Power Management Unbranded Generic APC Simple Signaling pinout.
    • DB9F 1 - DB9M 4
    • DB9F 2 - DB9M 3
    • DB9F 3 - DB9M 2
    • DB9F 4 - DB9M 1
    • DB9F 5 - DB9M 5
    • DB9F 6 - DB9M 4
    • DB9F 7 - DB9M 8
    • DB9F 8 - DB9M 7
    • DB9F 9 - NC
    • Shield - Shield
• Cable Marking:
  • E301305 RU AWM STYLE 2464 28AWG 80°C 300V VW-1 --- RU AWM I/II A/B 80°C 300V FT1 HERWELL
• Item Length:
  • Overall : 5FT (1500mm)
  • Wire: 4.6FT
• Weight: 3.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Proprietary Pinout Brand & Model specific compatibility NOT for standard Serial, RJ11, RJ45, or USB.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted or Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • UPS management cables are not universally interchangeable, while many use standard-looking connectors but the internal wiring (pinout) is often proprietary to the manufacturer.
  • Part Number 7.1.91.9005198 belongs to an unbranded or generic Serial UPS Power Management Cable functionally equivalent to the APC 940-0020 cable according to its Simple Signaling pinout.
  • Connecting a standard 'off-the-shelf' DB9  serial cable to many UPS models can cause the UPS to immediately shut down and drop the power load, potentially crashing the connected computers or servers. UPS Console cables are not interchangeable, cables vary by the brand, series, and port type of the UPS.
