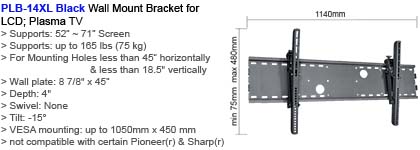

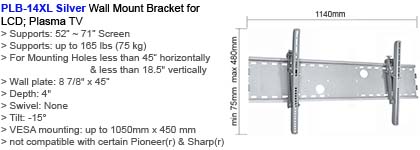

Wall Mount Bracket for LCD TV
PLB-14XL (PLB14XL) Black or Silver
BKT-LCD-W-PLB14XL-xxx

Features:
> Supports: 52” ~ 71” Screen
> Supports: up to 165 lbs (75 kg)
> For Mounting Holes less than 45“ horizontally
                               & less than 18.5" vertically
> Wall plate: 8 7/8" x 45”
> Depth: 4"
> Swivel: None
> Tilt: -15°
> VESA mounting: up to 1050mm x 450 mm
> not compatible with certain Pioneer(r) & Sharp(r)

This is Angle Adjustable Wall Bracket for LCD Plasma. This Flat Wall Mount supports most 52" to 71" flat panel screen and plasma TVs up to 165 lb weight.

The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The back of the display sits about 4 inches off the wall when set in parallel. The mount includes simple to align brackets and a unique wall plate that can be mounted to various wall constructions including wood studs or concrete.

WARNING: This mounting bracket is not compatible with certain PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U.
*Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.

Compatibility -
> Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 1050x450.
> Mounting holes on television should be 42" or less apart horizontally & 18.5" or less apart vertically.
> Maximum weight capacity: 165lbs/75kg

Dimensions -
> Wall plate: 45" x 8 7/8"
> Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.

Range of Motion -
> Tilt: o degree to 15 degrees down (variable)
> Swivel: None
> Extension from wall: 4.0" when parallel to the wall

Design & Construction:
> Solid toughened steel construction
> Durable scratch resistant finish in Black
> Easy installation.

Included in Box -
> Mount
> Mounting hardware
> User manual
